Airbus A320-232 NEW, Neuflugzeug |
€ 80.000.000 |
Übersicht
| Übersicht | | Typ: | Jet | | Hersteller: | Airbus | | Modell: | A320-232 NEW, Neuflugzeug | | Baujahr: | 2009 | | Serien-Nr.: | tba | | Eigenschaften: | IFR zugelassen
IFR ausgerüstet
Gewerblich zugelassen
JAR-OPS 1 zugelassen | | Standort: | Deutschland | | Gesamtzeit (TTAF): | 10 h | | Preis: | € 80.000.000 | | EU-versteuert: | nein | | Alle Details |
| Anbieter |
Carlos de Pilar Flugzeugandel
Postfach 1529
D-82157 Gräfelfing
Deutschland
Tel.: [+49] - (0)89 - 8542303
Fax: [+49] - (0)89 - 853176 |
| Kontakt zum Anbieter |
|
|
|
Details
| Übersicht | | Typ: | Jet | | Hersteller: | Airbus | | Modell: | A320-232 NEW, Neuflugzeug | | Baujahr: | 2009 | | Serien-Nr.: | tba | | Eigenschaften: | IFR zugelassen
IFR ausgerüstet
Gewerblich zugelassen
JAR-OPS 1 zugelassen | | Standort: | Deutschland | | Gesamtzeit (TTAF): | 10 h | | Preis: | € 80.000.000 | | EU-versteuert: | nein |
| Motor(en) | | Anzahl Motoren: | 2 | | Hersteller/Modell: | IAE V 2627-A5 | IAE V 2627-A5 |
| Beschreibung/Details Motoren | | CFM 56 |
| Bemerkungen/Sonstiges | GENERAL DESCRIPTION
Aircraft Type & Model: A320-232
Aircraft Manufacture Date: In production
Current Registration: In production
Seating Configuration: 180Y
Seat Pitch: 28/29 inches
Galley Manufacturer: Bucher Leichtbau AG
Galley Configuration: G1 & G5
Galley Standard: Atlas
Galley Carts: 11
Lavatories: 3
Attendant Seats: 6
Flight Deck Display: EFIS
Auxiliary Power Unit: Honeywell 131-9A
Engine (2): IAE V2527-A5
Wheels & Brakes: Messier-Bugatti
WEIGHTS AND CAPACITIES
Pounds Kilograms
Maximum Taxi Weight: 162,919 73,900
Maximum Take-Off Weight: 162,037 73,500
Maximum Landing Weight: 145,503 66,000
Maximum Zero Fuel Weight: 137,787 62,500
Operating Empty Weight (Estimate): 93,673 42,490
Engine Thrust: 26,500 lbs
Fuel Capacity: 6,300 USG 23,860 L
AVIONICS INSTALLATION
Manufacturer Part Number Quantity
Flight Management Guidance Computer: T
hales C13043BA02 2
Flight Augmentation Computer: Thales B397BAM0617 2
HF Comm Transceiver: Honeywell 964-0452-001 1
VHF Comm Transceiver:
Honeywell 064-50000-0505 3
Fixed ELT: Thales S1819502-02 1
SELCAL Decoder:
T.E.A.M. BC2065C 1
Pre-recorded Announcement & Music:
Matshushita RDAX7675-51 1
Cockpit Voice Recorder:
Honeywell 980-6022-001 1
Flight Data Recorder (SSFDR):
Honeywell 980-4700-042 1
Flight Data Interface & Management Unit:
Sagem ED48A100 1
Air Data/Inertial Reference Unit:
Honeywell HG2030AE21 3
Integrated Standby Instrument System:
Thales C16221WB01 1
VOR Receiver:
Honeywell 066-50012-0212 2
ADF Receiver:
Honeywell 066-50014-0202 1
DME Interrogator:
Honeywell 066-50013-0202 2
DDRMI (VOR/ADF/DME):
Thales 63543-150-5 1
Multi-Mode Receiver: Honeywell 066-50029-1161 2
Radio Altimeter Transceiver:
Honeywell 066-50007-0212 2
Weather Radar Transceiver:
Honeywell 066-50008-0407 1
Enhanced Ground Proximity Warning Computer:
Honeywell 965-1676-002 1
ATC Transponder: Honeywell 066-01127-1402 2
TCAS II Computer:
Honeywell 940-0300-001 1
ATSU:
Aerospatiale LA2T0G20503B050 1
MISCELLANEOUS

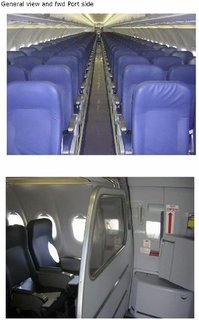

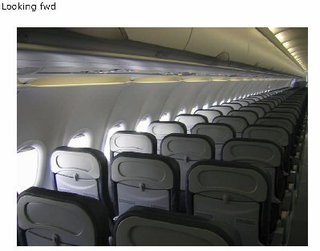

Cabin layout: 180 all economy class, 28/29 inch seat pitch, Leather Non Reclineable Seats;
6 cabin attendant seats;
3 lavatories;
Flight Deck:
2 Pilots' seats (powered); 2 Observers seat;
Modified intrusion and penetration resistant cockpit door installed;
LCD flight displays;

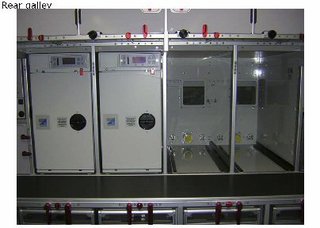

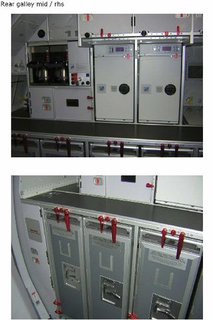

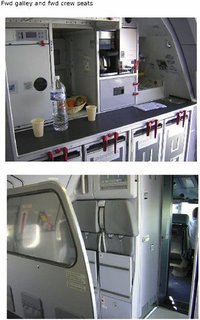

Galley:
11 full size cart stowage; 12 standard boxes
3 ovens, 3 Wine chillers, 3 coffee makers/ water boilers, 2 hot jugs & 2 hot cups
Cargo Holds: Class C, (bulk capability);
Other: Compliance: ACAS II; VHF 8.33 kHz; VOR/ILS FM Immunity; Mode ‘S’
Transponder; RVSM; Category IIIB AWOPS;
Entry Doors: Mounted with escape slides; Full electrically signaled braking system; Universal Brake Cooling Fans; Steel Covers for Vertical Stabilizer. Enhanced electrical power generation system. |
